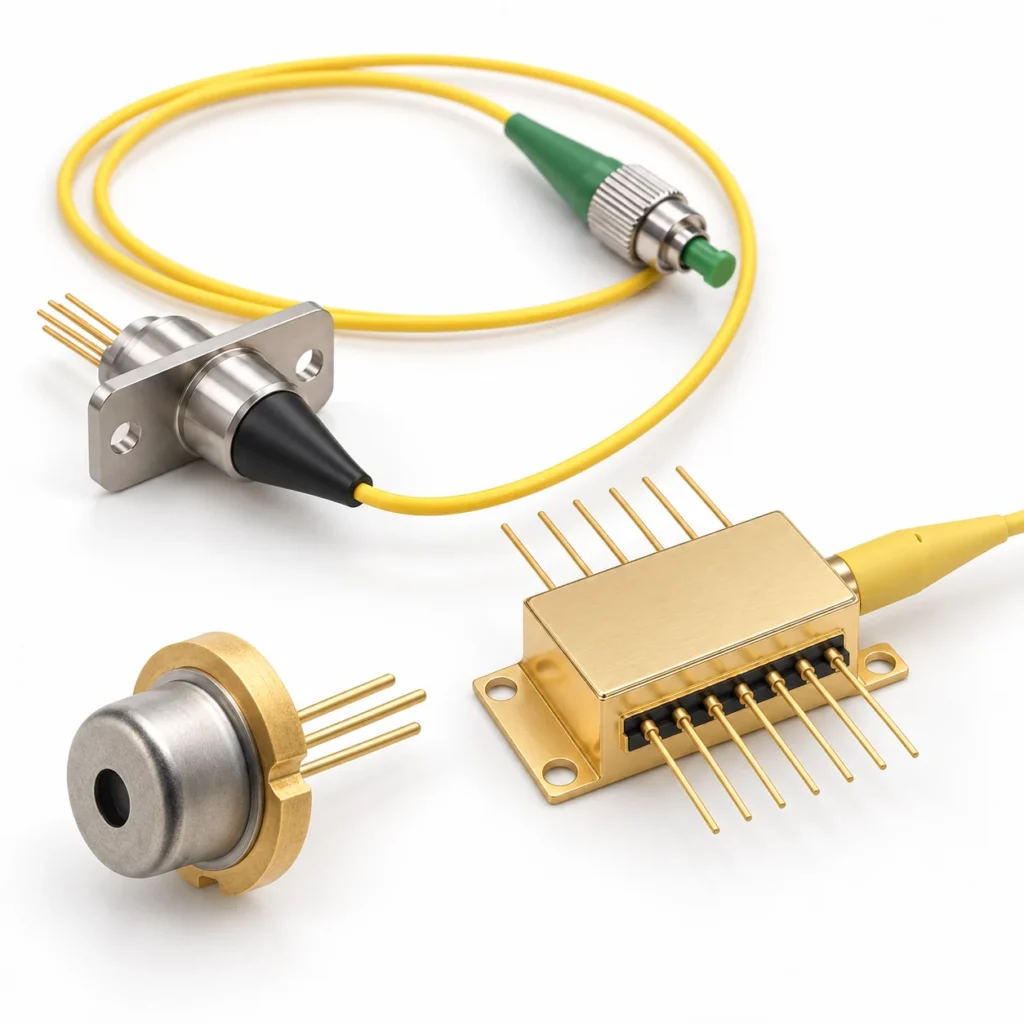

Superluminescent Diodes
Superluminescent diodes (SLDs) from 405 nm to 2300 nm with broad spectral bandwidth and low coherence, up to 130 mW, for OCT, fiber gyroscopes and sensing.
112 products · page 1 of 5
| Model | Wavelength | Power | Operating Temp. | Package | Datasheet |
|---|---|---|---|---|---|
| FESL-1050-10-BTF | 1050 nm | 10 mW | -20 to 65°C | BTF | |
| FESL-1050-20-BTF | 1050 nm | 20 mW | -20 to 65°C | BTF | |
| FESL-1060-20-BTF | 1060 nm | 20 mW | -20 to 65°C | BTF | |
| FESL-1070-10-BTF | 1070 nm | 10 mW | -20 to 65°C | BTF | |
| FESL-1300-03-BTF | 1300 nm | 3 mW | -20 to 65°C | BTF | |
| FESL-1300-05-BTF | 1300 nm | 5 mW | -20 to 65°C | BTF | |
| FESL-1300-1.5-BTF | 1300 nm | 2 mW | -20 to 65°C | BTF | |
| FESL-1300-15-BTF | 1300 nm | 15 mW | -20 to 65°C | BTF | |
| FESL-1300-20-BTF | 1300 nm | 20 mW | -20 to 65°C | BTF | |
| FESL-1310-03-Coax | 1310 nm | 3 mW | -20 to 65°C | Coax | |
| FESL-1310-10-BTF | 1310 nm | 10 mW | -20 to 65°C | BTF | |
| FESL-1310-10-BTF-WB | 1310 nm | 10 mW | -20 to 65°C | BTF | |
| FESL-1310-12-M5 | 1310 nm | 12 mW | -20 to 65°C | TO-56 | |
| FESL-1310-30-BTF | 1310 nm | 30 mW | -20 to 65°C | BTF | |
| FESL-1350-25-BTF | 1350 nm | 25 mW | -20 to 65°C | BTF | |
| FESL-1470-15-BTF | 1470 nm | 15 mW | -20 to 65°C | BTF | |
| FESL-1520-02-Coax | 1520 nm | 5 mW | -20 to 65°C | Coax | |
| FESL-1520-06-M5 | 1520 nm | 6 mW | -20 to 65°C | TO-56 | |
| FESL-1520-08-BTF | 1520 nm | 8 mW | -20 to 65°C | BTF | |
| FESL-1550-02-Coax | 1550 nm | 2 mW | -20 to 65°C | Coax | |
| FESL-1550-05-BTF Flat-Top Spectrum | 1550 nm | 5 mW | -20 to 65°C | BTF | |
| FESL-1550-05-BTF Gaussian Spectrum | 1550 nm | 5 mW | -20 to 65°C | BTF | |
| FESL-1550-10-BTF Gaussian Spectrum | 1550 nm | 10 mW | -20 to 65°C | BTF | |
| FESL-1550-12-BTF | 1550 nm | 12 mW | -20 to 65°C | BTF | |
| FESL-1550-15-BTF | 1550 nm | 15 mW | -20 to 65°C | BTF |
