Products

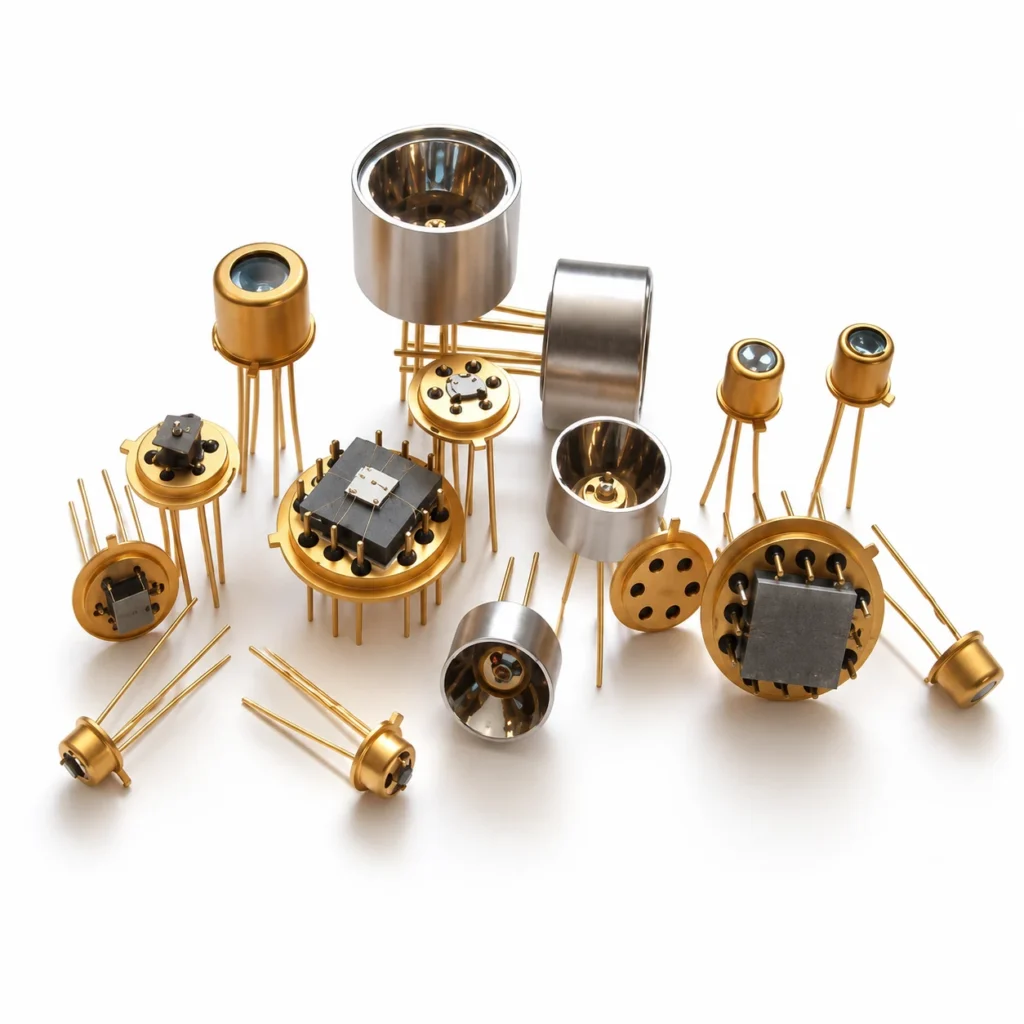

MID-IR LEDs and Photodiodes

Mid-IR LEDs and photodiodes from 1025 nm to 4200 nm in TO-8 and board-mounted packages, for gas sensing, spectroscopy and moisture measurement.

Part number

Category

Reset Per page

42 products · page 1 of 2

Model	Wavelength	Power	Operating Temp.	Package	Datasheet
AmpB				Board	PDF
FLPD-900-1700-5mm-PD-TO-8			-50 to 100°C	TO-8	PDF
Infrared LED 1025-XX	1025 nm	15 mW	5 to 85°C	*	PDF
Infrared LED 1050-XX	1050 nm	12 mW	5 to 90°C	*	PDF
Infrared LED 1350-XX	1350 nm	10 mW	5 to 85°C	*	PDF
Infrared LED 1450-XX	1450 nm	7 mW	5 to 85°C	*	PDF
Infrared LED 1500-XX	1500 nm	7 mW	5 to 90°C	*	PDF
Infrared LED 1550-XX	1550 nm	3.5 mW	5 to 85°C	*	PDF
Infrared LED 1650-XX	1650 nm	7 mW	5 to 90°C	*	PDF
Infrared LED 1750-XX	1750 nm	5 mW	5 to 90°C	*	PDF
Infrared LED 1850-XX	1850 nm	500 µW	5 to 90°C	*	PDF
Infrared LED 1900-XX	1900 nm	5 mW	5 to 85°C	*	PDF
Infrared LED 1950-XX	1950 nm	600 µW	5 to 90°C	*	PDF
Infrared LED 2050-XX	2050 nm	600 µW	5 to 90°C	*	PDF
Infrared LED 2150-XX	2150 nm	600 µW	5 to 90°C	*	PDF
Infrared LED 2250-XX	2250 nm	600 µW	5 to 90°C	*	PDF
Infrared LED 2350-XX	2350 nm	300 µW	5 to 90°C	*	PDF
Infrared LED 2750-XX	2750 nm	12 µW	-60 to 90°C	*	PDF
Infrared LED 2850-XX	2850 nm	20 µW	-60 to 90°C	*	PDF
Infrared PD 24-03-XX			-60 to 90°C	*	PDF
Infrared PD 24-05-XX			-60 to 90°C	*	PDF
Infrared PD 24-10-XX			-60 to 90°C	*	PDF
LDB-pulse				Board	PDF +1
LDB-qCW				Board	PDF
MID-IR LED 3350-XX	3350 nm	20 µW	-60 to 90°C	*	PDF
