CW Laser Diodes

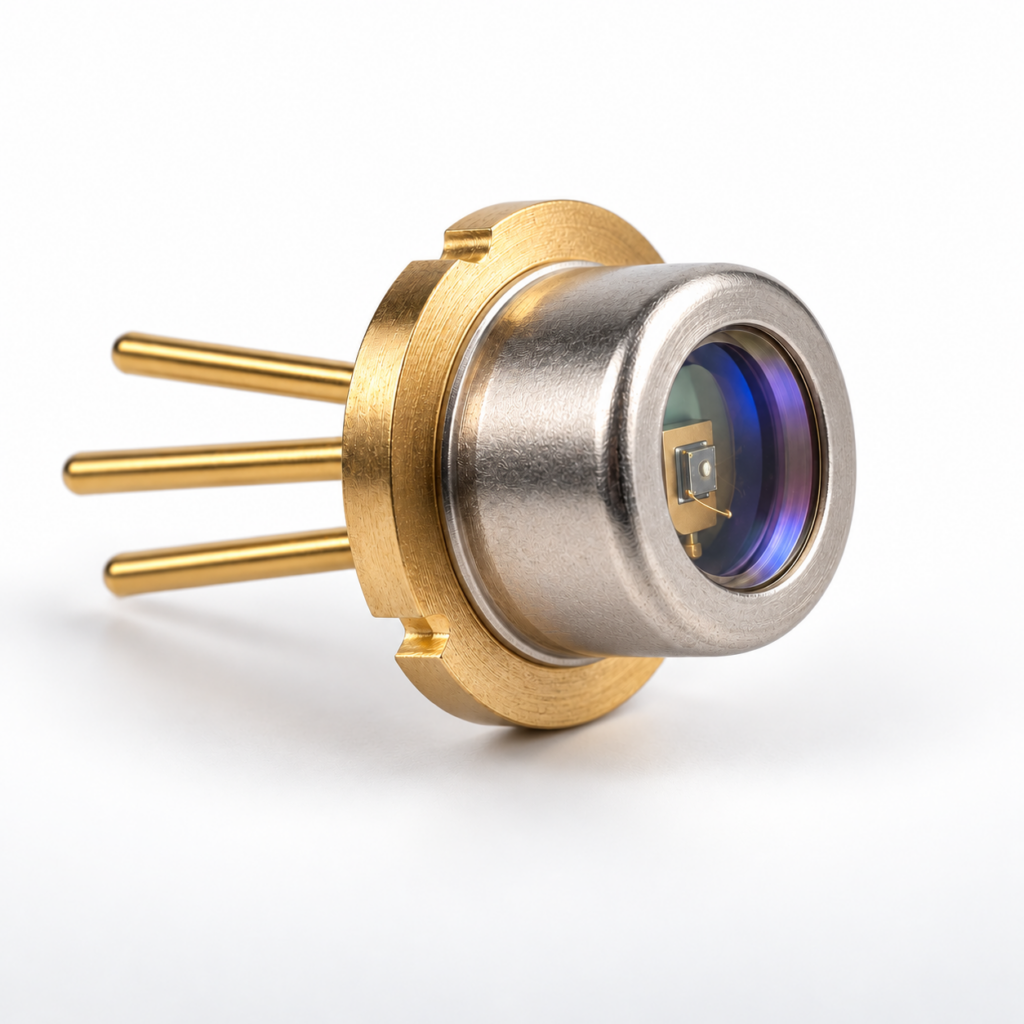

CW laser diodes from 375 nm to 5263 nm and from 1 mW to 30 W, in TO-56, TO-18, coaxial and butterfly packages, single-mode and multimode.
945 products · page 1 of 38
| Model | Wavelength | Power | Operating Temp. | Package | Datasheet |
|---|---|---|---|---|---|
| B-103 | 1310 nm | 5.7 W | -40 to 60°C | B-Mount | |
| B-104 | 1450 nm | 5 W | -40 to 60°C | B-Mount | |
| B-106 | 1470 nm | 5 W | -40 to 60°C | B-Mount | |
| B-115 | 1550 nm | 600 mW | -40 to 60°C | B-Mount | |
| B-118 | 1550 nm | 4.2 W | -40 to 60°C | B-Mount | |
| B-122 | 1470 nm | 7 W | -40 to 60°C | B-Mount | |
| B-123 | 1375 nm | 5.6 W | 10 to 30°C | B-Mount | |
| B-124 | 1660 nm | 450 mW | -40 to 60°C | B-Mount | |
| B-134 | 1650 nm | 3.2 W | -40 to 60°C | B-Mount | |
| B-146 | 1625 nm | 500 mW | -40 to 60°C | B-Mount | |
| B-163 | 1310 nm | 800 mW | -40 to 60°C | B-Mount | |
| B-165 | 1940 nm | 1.1 W | -40 to 60°C | B-Mount | |
| C-105 | 1480 nm | 7 W | -40 to 60°C | C-Mount | |
| C-106 | 1480 nm | 5 W | -40 to 60°C | C-Mount | |
| C-116 | 1565 nm | 4.2 W | -40 to 60°C | C-Mount | |
| C-121 | 1550 nm | 600 mW | -40 to 60°C | C-Mount | |
| C-123 | 1625 nm | 400 mW | -40 to 60°C | C-Mount | |
| C-124 | 1375 nm | 5.6 W | -40 to 60°C | C-Mount | |
| C-128 | 1450 nm | 5 W | -40 to 60°C | C-Mount | |
| C-130 | 1320 nm | 5.7 W | -40 to 60°C | C-Mount | |
| C-131 | 1650 nm | 450 mW | -40 to 60°C | C-Mount | |
| C-132 | 1650 nm | 3.5 W | -40 to 60°C | C-Mount | |
| C-156 | 1940 nm | 1.1 W | -40 to 60°C | C-Mount | |
| CHP-103 | 1310 nm | 5.7 W | -40 to 60°C | Chip | |
| CHP-105 | 1450 nm | 5 W | -40 to 60°C | Chip |
